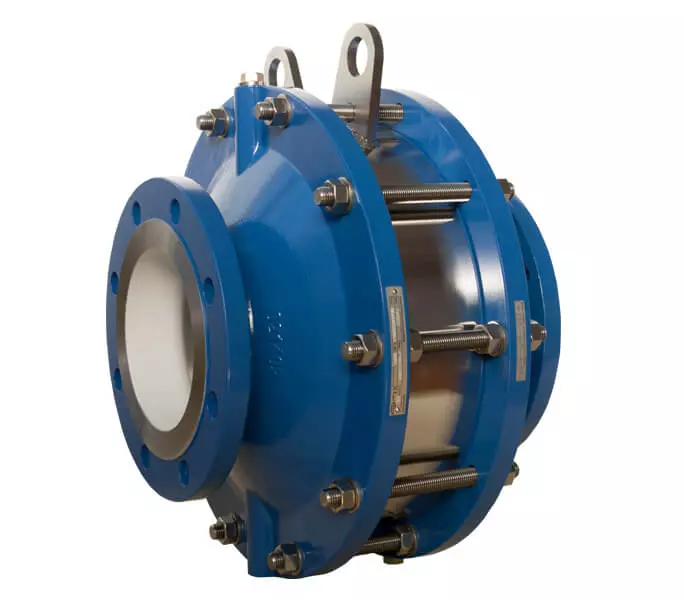

Cashco – 7A00 Detonation Flame ArrestorEnquire Now
BRAND: CashcoCATEGORY: Flame Arrestors
The Cashco 7A00 detonation flame arrestor is a device that can be fitted to the opening of an enclosure or to the connecting pipe work of a system of enclosures. Its primary function is to allow the flow of gases or vapor of flammable liquids through the enclosure, but prevent the transmission of a flame.
The element inside the housing provides an extinguishing barrier to the ignited vapor mixture by absorbing heat from the flame. The Model 7A00 is used as an independent safety system to ensure explosion protection.
We have full valve repair and reconditioning facilities in Secunda & Durban.
Contact our technical specialists today for a quote or download the brochure to find out more.
Specifications
| Series | 6A00-EM |
| Design | Detonation Flame Arrestor – Easy Maintenance |
| Features |
|
| Size Range |
|
| Pressure Rating |
|
| End Connections | Flanged |
| Housing Materials | Carbon steel / Stainless Steel |
| Summary | Standard Stainless Steel (1.4571) element is suitable for explosion group IIA, IIB3 and IIC flammable gases and vapors. Elements for other gas groups are available upon request. |
| Standards |
|
| Applications | Storage tanks, process vessels and process pipelines to prevent the ignition of flammable gases and vapors, ensuring safe processing and storage as well as to prevent external flames from igniting flammable vapors within the tank. |
