PMV – D20 Compact Digital Valve PositionerEnquire Now

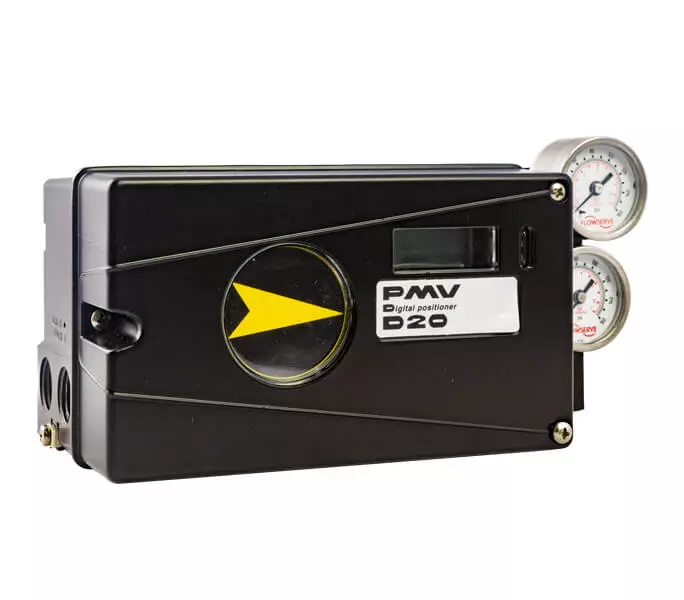

PMV 8211 D20 Compact Digital Valve PositionerPMV 8211 D20 Compact Digital Valve PositionerPMV 8211 D20 Compact Digital Valve PositionerPMV 8211 D20 Compact Digital Valve Positioner

BRAND: PMVCATEGORY: Valve Positioners

The New PMV D20 compact digital positioner is ideal for both linear and rotary actuators in single-acting applications. It offers very high control precision on even the smallest valves. IS, NI and explosion-proof versions.

  • Greater process control with very high precision, even on the smallest valves, plus add-in switches and 4-20 mA position feedback options.
  • Installation and operation ease from friction clutch, compact design, and single button quick auto-calibration feature that tunes the D20 in seconds.
  • Broad application versatility made possible by flexible design that allows mounting to VDI/VDE 3845 (rotary) and VDI/VDE 3847 (linear with integrated tubing) standards.
  • Optional LCD (D22).
  • ATEX, FM intrinsically safe and non-incendive certificates, explosion-proof version, Alu or SST and LCD available.
  • 4-20 mA In/Out, Hart, Profibus PA and Foundation Fieldbus available.

Contact one of our technical specialists for a quote today or download the brochure to learn more!

Specifications

SeriesD20 (New)
Design

Compact Digital Modulating Rotary & Linear Control

Features
  • Rotary and linear control valves
  • Simple to operate
  • Very user friendly
  • Very high precision on small valves
  • Friction clutch and spring loaded shaft
  • Explosion proof
  • Intrinsically safe
  • Non incendive
Housing
Materials

Aluminium / Stainless Steel

Summary

Diagnostics

  • Standard
  • Local alarm monitoring
  • ValveSight FDT/DTM diagnostics
  • AMS SnapOn application
Max
Pressure
6 Bar
Options &
Accessories
  • 4-20mA position feedback
  • HART, Profibus PA and Foundation Fieldbus
  • Bolt-on gauge block
  • Direct- and remote-mounting versions
  • Plug-in limit switches
Configuration

Download Supporting Software here

With
Comms
  • HART
  • Profibus-PA
  • Foundation Fieldbus
Applications

Where accurate modulating control is required for rotary and linear control valves.
